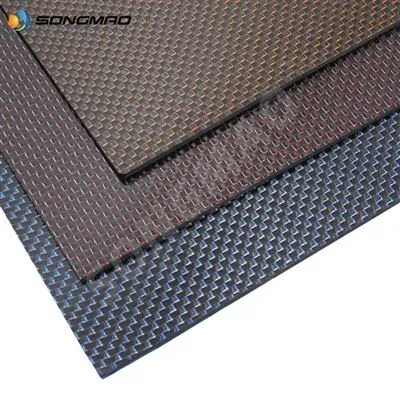

It's a normal sheet? NO!It's actually a new structural reinforcement material- -carbon fiber sheet.

(1)Control and crack reinforcement of reinforced concrete bridge;

(2) Reinforced concrete bridge plate girder, box girder, T girder bending reinforcement;

(3) Civil buildings, industrial buildings and other buildings, large-span structural beams, plate bending reinforcement, control crack reinforcement;

(4) Long-span reinforced concrete bridge reinforcement, improve the bearing capacity, and is widely used in prestressed or non-prestressed bridge structures.

(1)Light weight, easy operation and do not need large machinery and equipment;

(2)high tensile strength, more than several times of ordinary steel, the elastic modulus is better than steel, with excellent corrosion resistance and earthquake resistance;

(3)High strength, the quality is only 1 / 5 of the steel, has a high toughness, can be coiled, can be supplied in a large length without lap;

(4)The shape of the components is slightly changed, and it does not affect the net space of the structure;

(5)Carbon fiber sheet construction is convenient, no complex operation, the construction quality is easy to ensure.

(1)Construction preparation: positioning and laying according to the design drawings;

(2)Substrate treatment: chisel the concrete surface painting layer to be reinforced, and polish the surface flat;

(3)The concrete surface dust blow clean;

(4)Configuration of glue: according to the weight ratio A: B=3:1, stir component A.B evenly in the packaging bucket;

(5)Apply glue: evenly the glue on the surface of the carbon sheet to avoid bubbles;

(6)Paste the carbon board: paste the carbon sheet on the concrete surface, remove the surrounding overflow of glue and fix it;

(7)Curing and curing: at room temperature, the curing time should not be less than 24 hours.
